About this tool
For CR Eagle and TPMS V800.

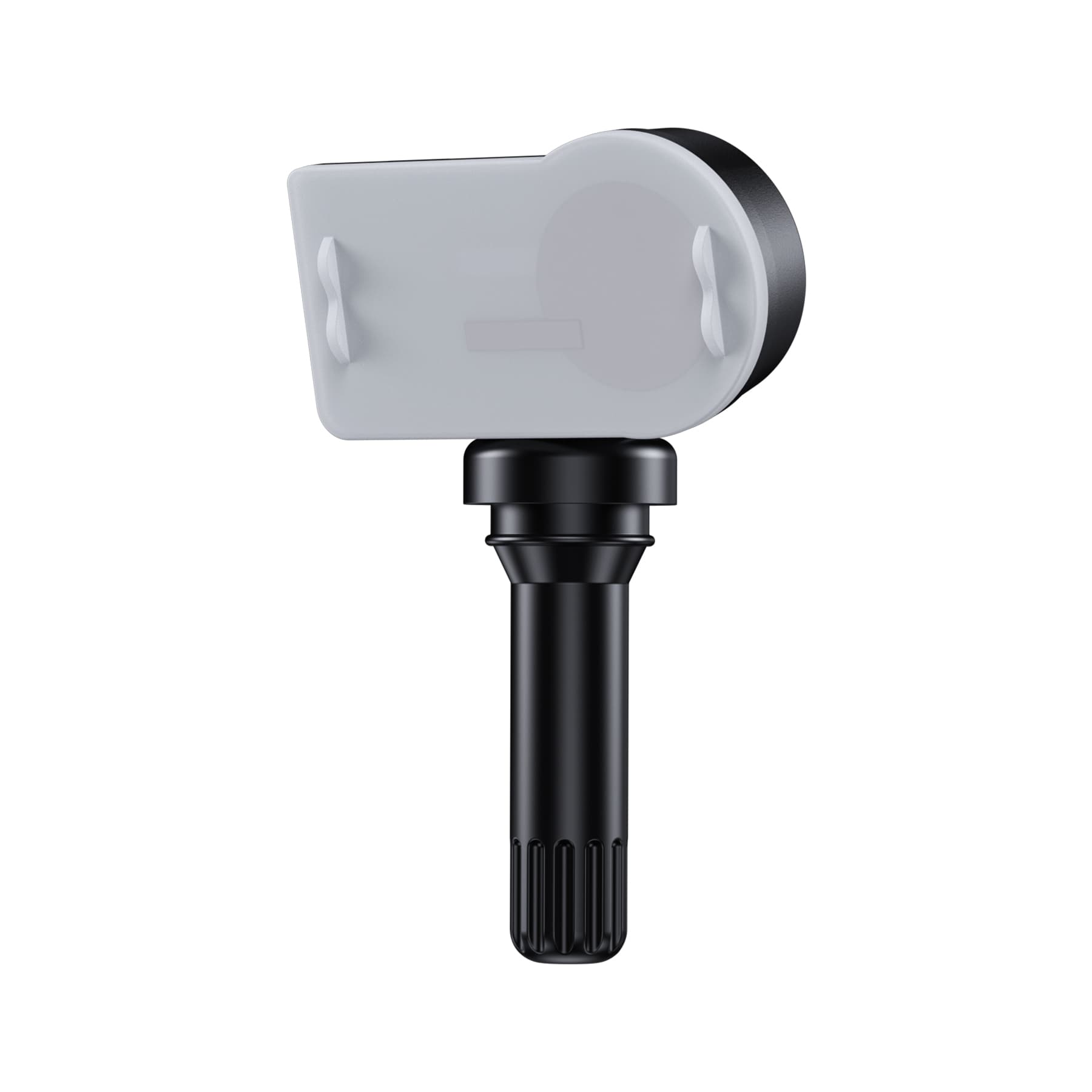

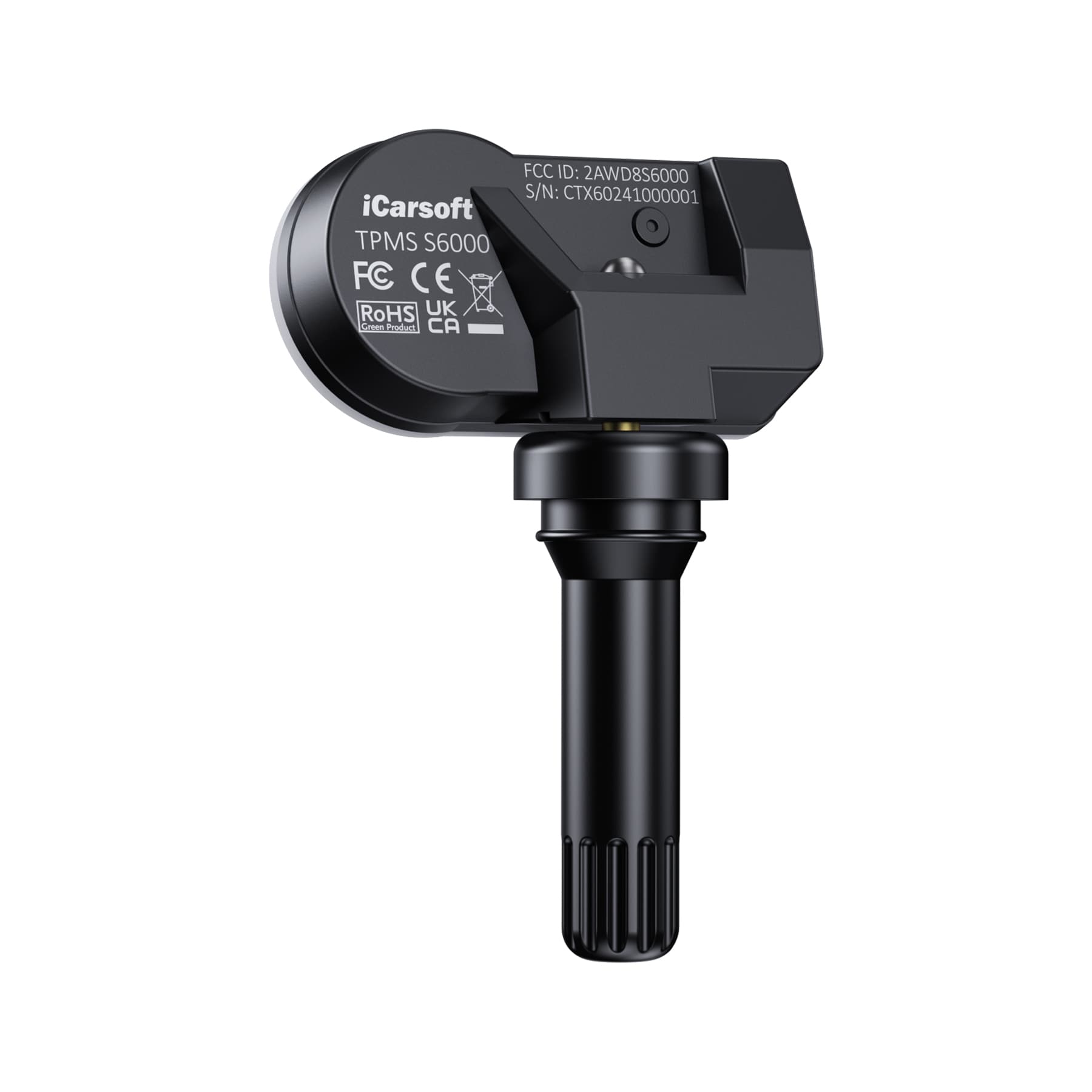

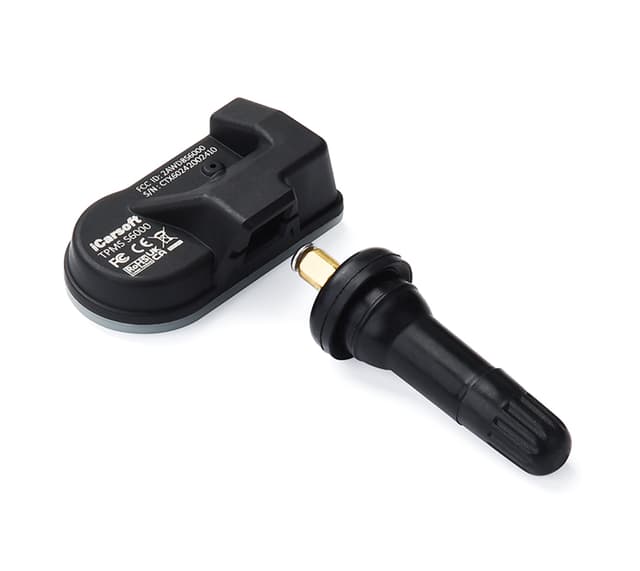

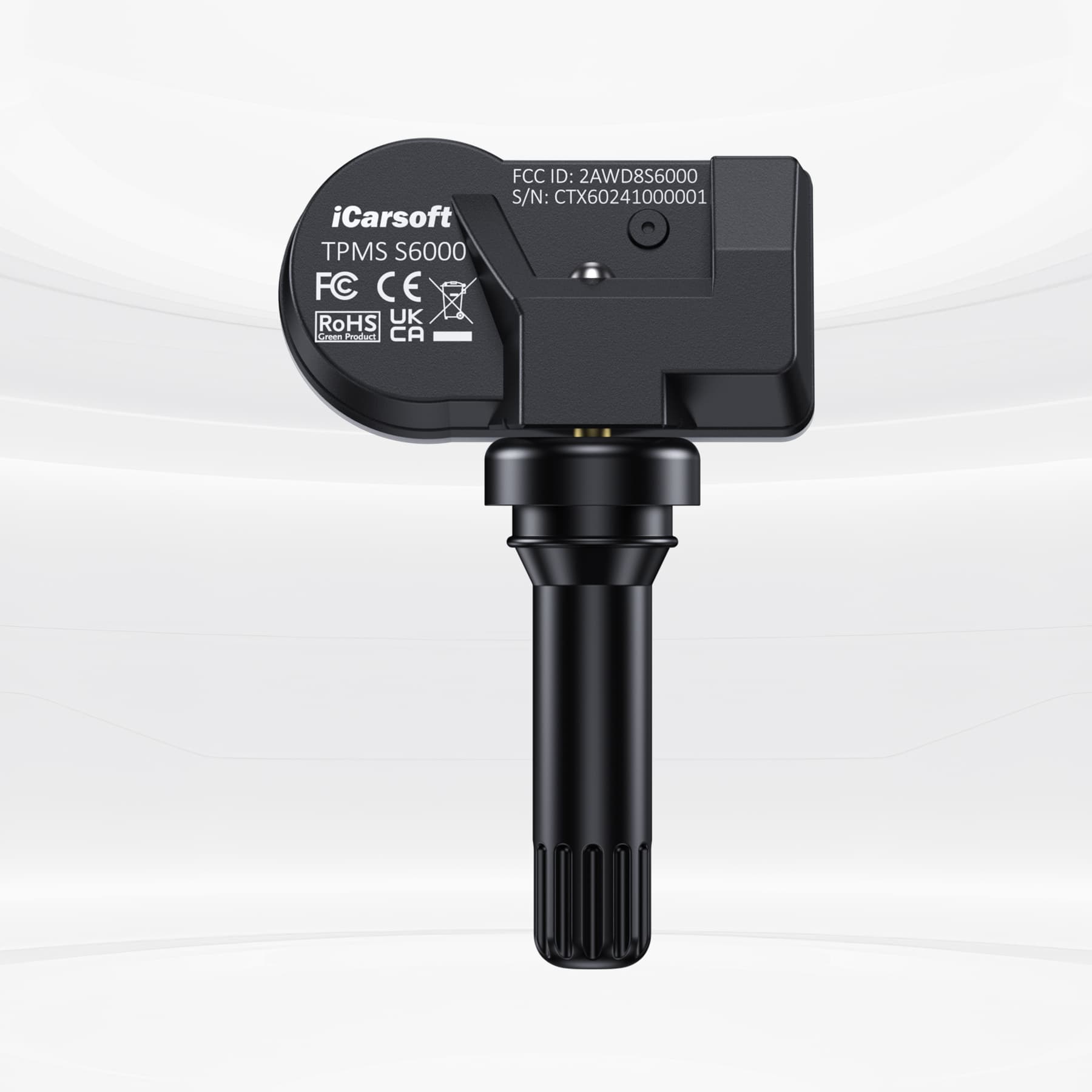

The manufacturer level sensor for nearly every TPMS-equipped vehicle
For CR Eagle and TPMS V800.
● Can replace the original sensor,supports unlimited programming.
easy to install.
● Pressure values are acourate to 0.1bar.
● Effectively prevent air leakage with strong stability.
Safety Instructions
Please read this manual carefully before using the product, be familiar with the structure of the product and master the installation method of the product. Before installation, please confirm that the product accessories are complete, the product can work normally, and there is no abnormal appearance and structure. During the installation process, the company shall strictly abide by the maintenance operation specifications and use professional maintenance tools. Otherwise, the company will not be responsible for any problems caused by the customer's illegal operation. If there is any problem in the process of using the product, it must be replaced or stopped immediately and tested by professional maintenance personnel or
after-sales service. After installing the product, be sure to re-measure the dynamic balance of the tire to eliminate safety risks.
Parameters
Storage Temperature: -10°C~50°C
Operation Temperature:-40°C~125°C
Pressure monitoring range:1-900Kpa
Maximum transmit power:≤-10.3dBm
Battery life:3-5years
Frequency:433.92MHz & 315MHz (For United States)
Pressure accuracy:±5Kpa
Temperature accuracy：±3°C
Weight:30.9g(With valve)
Dimensions:approx.73mm*48mm*20mm

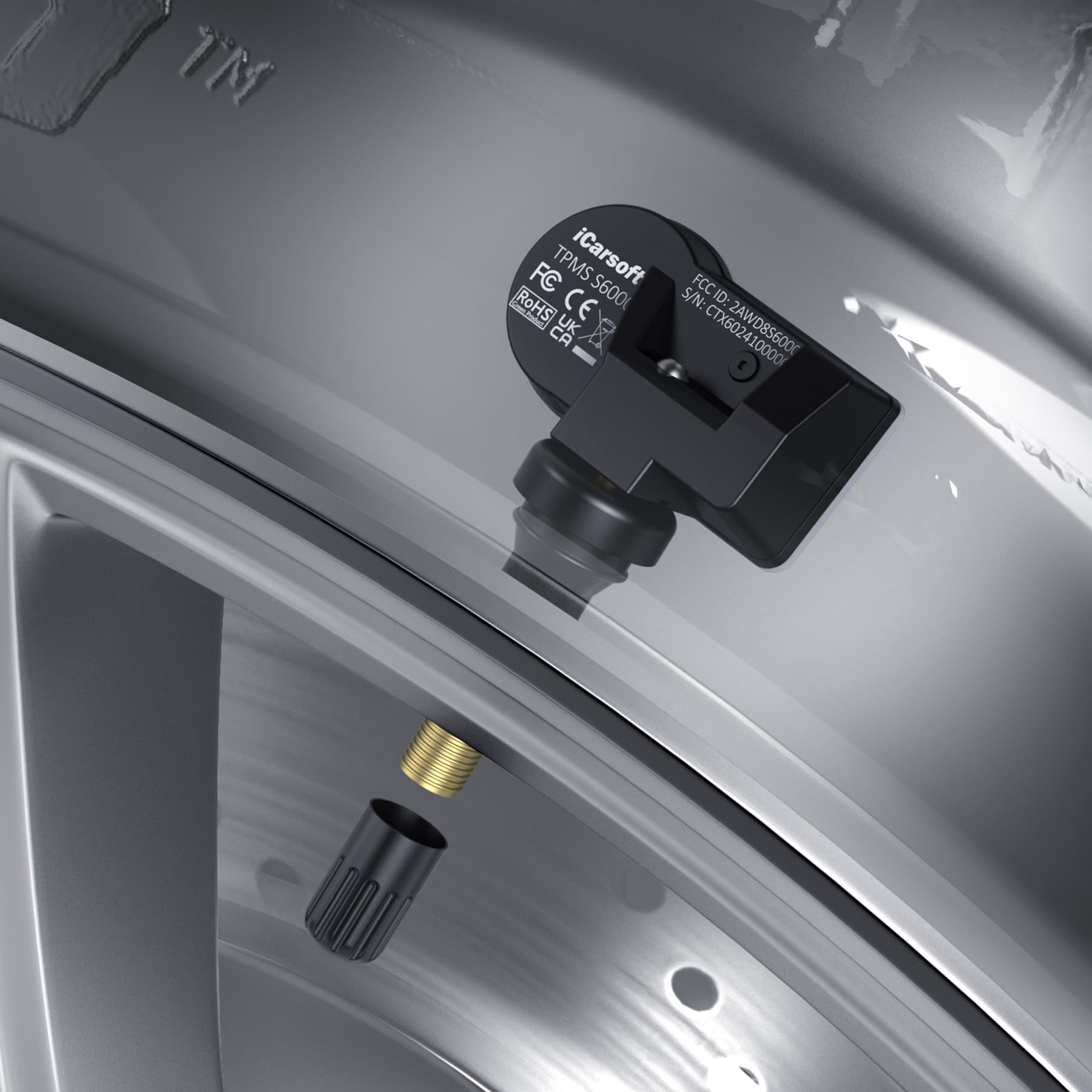

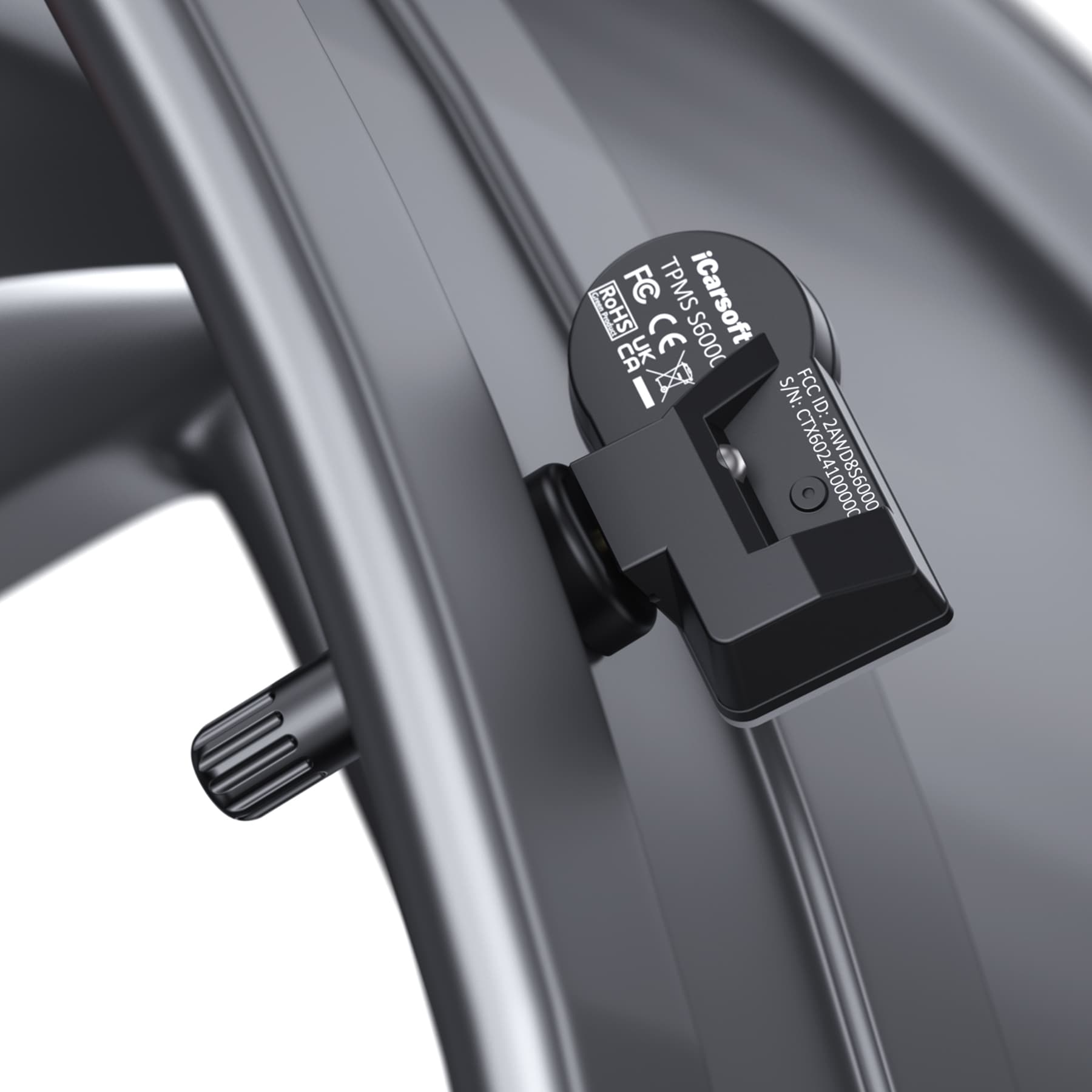

Installation Operation Steps
Step 1:
Please remove the tire cap.
Step 2:
Then install the tire sensor.
Step 3:
Inflate the tires.
Step 4:
Please put on the valve cover.
Step 5:
Test balance.
Step 6:
Adjust balance.
FCC Requirement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user' s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Packing List & Accessories
Interested in the TPMS S6000?
This page is for product information. Tell us what you need and our team will get back to you shortly — to confirm vehicle compatibility, request a quote, or find your nearest authorized dealer.
- Confirm vehicle compatibilityCheck support for your VIN / model year
- Get pricing & availabilityQuotes, stock, wholesale & retail inquiries
- Find a local authorized dealerWe connect you with your nearest channel
Want to become a dealer? Apply to partner →
Available through authorized sellers.
This page is for product information. Get in touch with our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
